◉ Product Description
| Product Name | Steel Angle |
| Grade | Q235B/Q355B/Q420B of GB standard;S235JR/S355JR/S355JO/S355J2 of EN standard;SS400/SS540 of JIS standard;A36, A572 gr.50/60 of ASTM |
| standard;Gr. A, Gr. B, Gr. AH32, AH36 of ABS, CCS, VL, LR, BV, KR, RINA and NK standards | |
| Material | Q195,Q215,Q235B,Q345B,S235JR/S355JR/SS400 |
| Thickness | 6-35mm |
| Length | 6m, 9m, 12m or as customized |
| Surface Treatment | Galvanizing (hot-dip galvanizing and electroplating galvanizing), painting, and anti rust coating treatment |
| Connection method | Welding, bolt connection or riveting for connection |
| Production process | Hot rolling, cold bending or cold drawing process |
| An example table of angle steel specification parameters, covering common angle steel specifications and related parameters: | |||||
| Specification: | Edge Width (mm) | Edge Thickness (mm) | Weight (kg/m) | Section Modulus (cm ) | Bending Strength (N 路 m) |
| 20*20*3 | 20 | 3 | 1.74 | 0.41 | 27.49 |
| 25*25*3 | 25 | 3 | 2.17 | 0.66 | 44.22 |
| 30*30*3 | 30 | 3 | 2.61 | 1.11 | 58.95 |
| 40*40*4 | 40 | 4 | 4.66 | 2.19 | 104.02 |
| 50*50*4 | 50 | 4 | 5.84 | 3.54 | 133.87 |
| 60*60*5 | 60 | 5 | 8.21 | 5.75 | 186.33 |
| 80*80*6 | 80 | 6 | 12.6 | 10.42 | 318.39 |
| 90*90*8 | 90 | 8 | 17.65 | 17.46 | 453.58 |
| 100*100*10 | 100 | 10 | 25.43 | 27.65 | 705.53 |

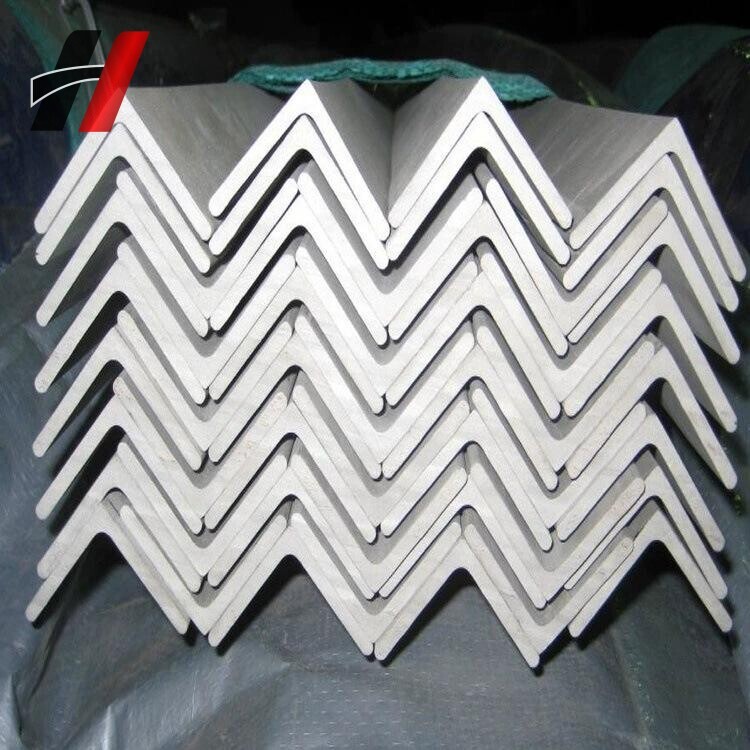

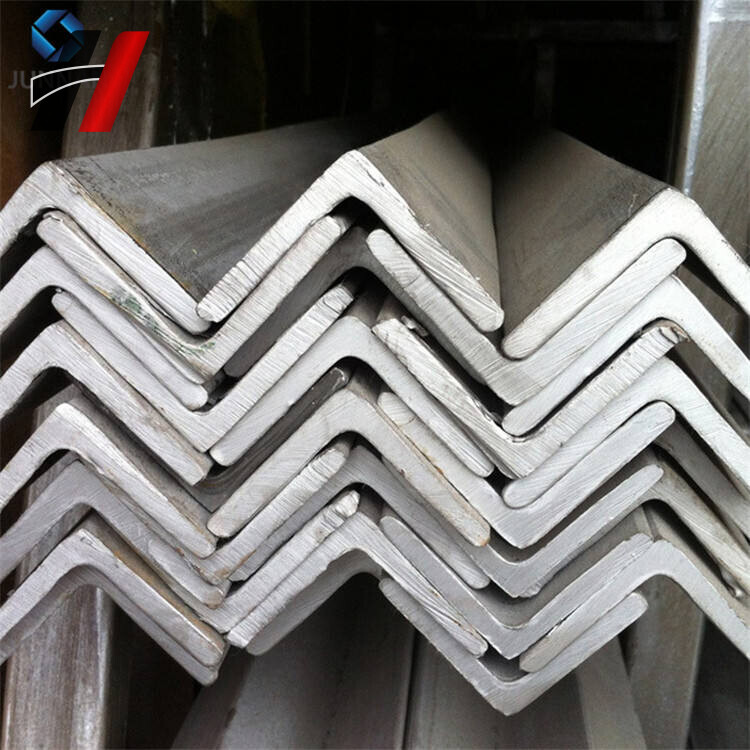

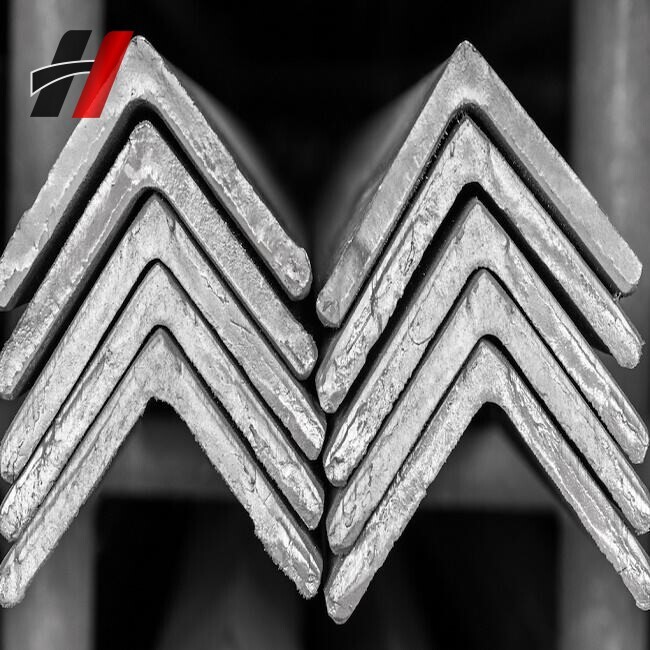

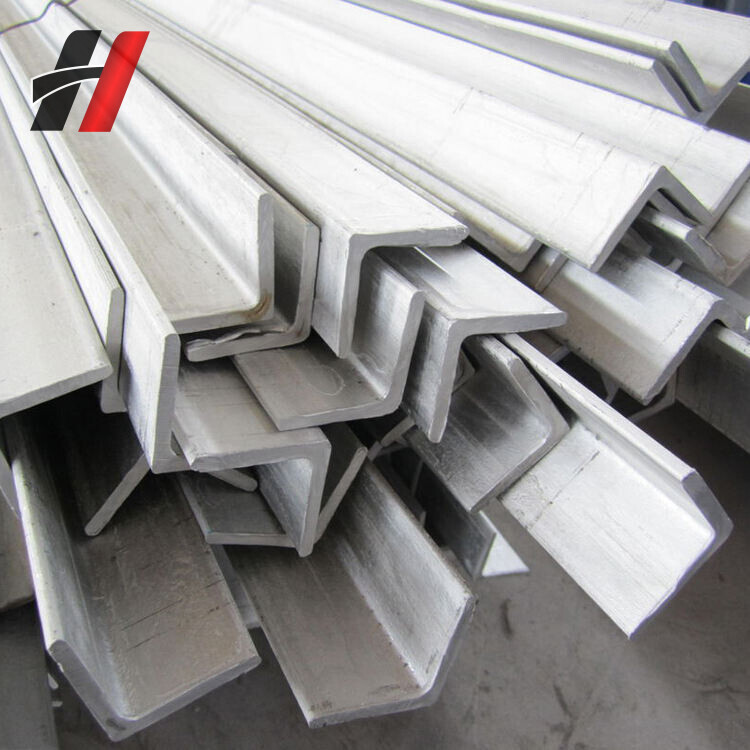

◉ Product Show
◉ Factory
◉ FAQ
Q: Can you provide samples?
A: Yes, we can. Samples will be delivered within 1 – 3 days upon request. The associated cost and other details can be discussed.
Q: Can you handle large-volume orders?
A: Certainly. We possess multiple production lines and vast production capacity, ensuring we can meet any large order demands promptly.
Q: Do you accept small orders?
A: Our MOQ is 1 ton.
Q: Can I add my logo?
A: Yes, we can provide OEM and ODM.
Q: How many countries have you exported to?
A: We have exported to the United States, Canada, Chile, Colombia, Russia, Brazil, Ukraine, Thailand, Myanmar, Vietnam, India and other African countries. We have rich export experience and we are familiar with different market needs and can help customers avoid a lot of trouble.
Q：How to guarantee the quality of the goods?
A: Always a pre-production sample before mass production, always final inspection before shipment.
